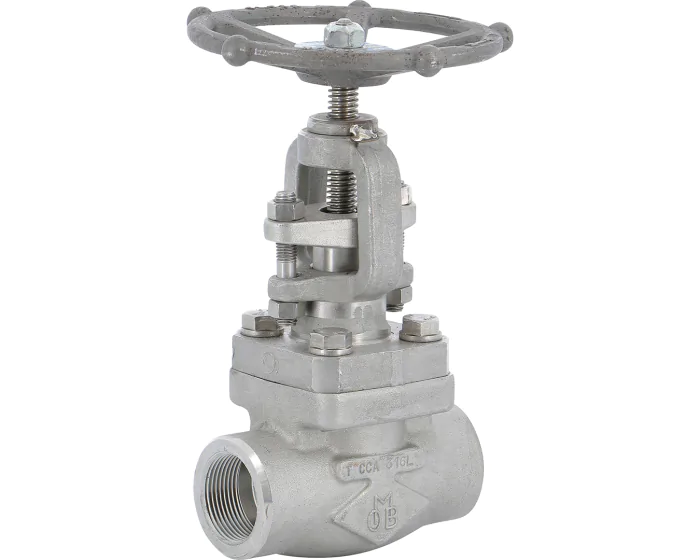

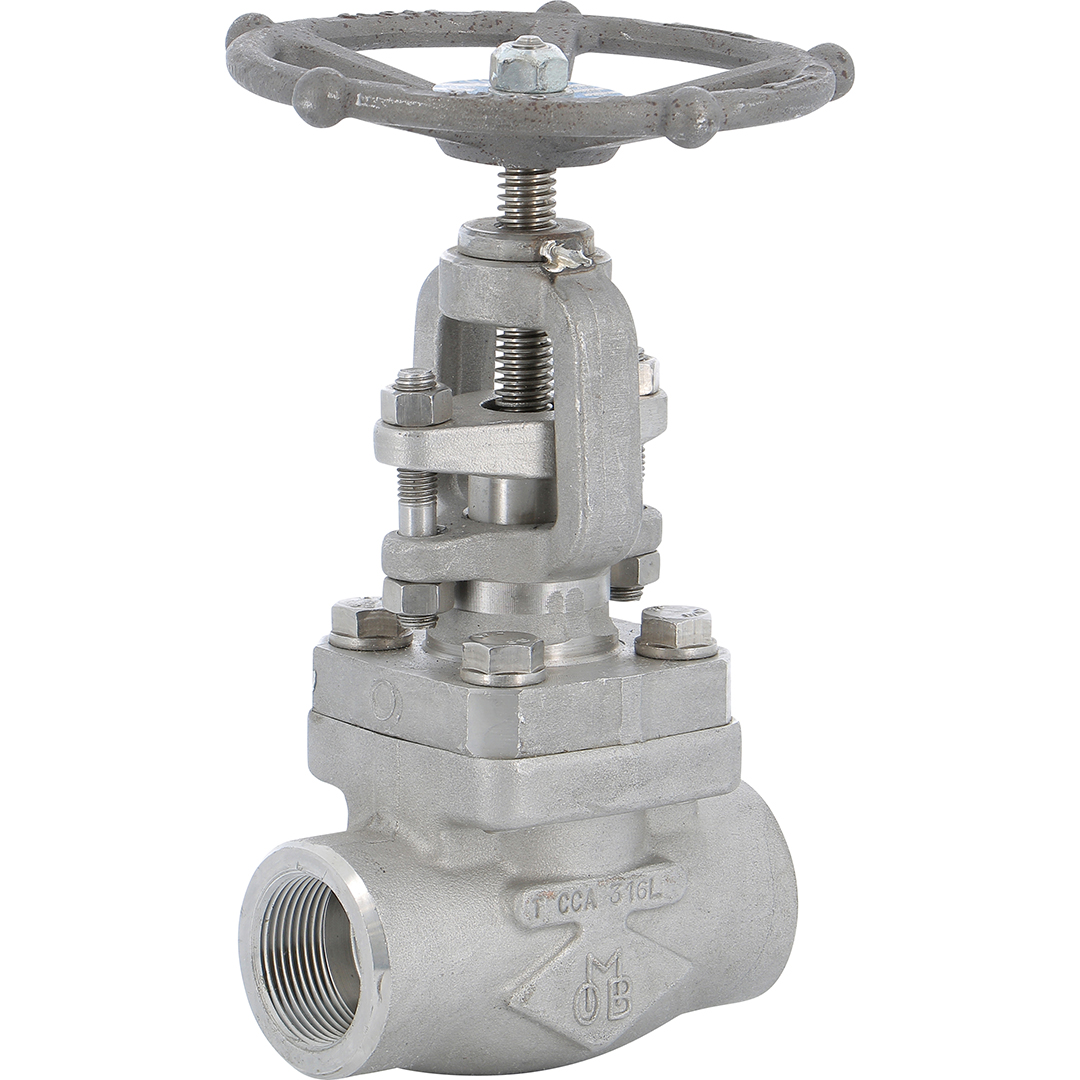

The globe valve series 453 in forged stainless steel A182 F316, female / female NPT connection, Class 800, TRIM 10, standard bore with bolted bonnet, ATEX compliant for petroleum, steam, petrochemical and chemical industries.
| Specification | Value |
|---|---|
| DN inches NPS | 3/8'' |
| Option certificate 3.1 | Yes |
| Bonnet material | Stainless steel ASTM A182 F316 |
| Construction standard | ISO 15761 - API 602 V8 |
| CE risk category | III Module H |
| TRIM | TRIM 10 |
| Brand | OMB |
| Tightness test standard | API 598 |
| Bonnet | Bolted |
| Steam | Yes |
| Opening device | Handwheel |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel ASTM A479 type 316 |
| ATEX compatible | Yes |
| DN | DN10 - 3/8'' |
| Face to Face (mm) | 80.0 |
| Sealing | Metal / Metal |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 1.2 |
| Body material | Stainless steel F316/F316L |
| Bore | Standard |
| Packing gland | Yes |
| PS (bar) | 132 |
| Connections | NPT FF |
| Seats | Stainless steel ASTM A479 type 316 |
| TS max (°C) | 538 |
| TS min (°C) | -49 |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| Type of stem | Rising |
| CE | Yes |
| Plug material | Stainless steel ASTM A479 F316 |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| NPT FF Stainless steel F316/F316L Standard 3/8'' | 453003 | S1007542 |
€155.04
(excl. btw)
|
add to cart |
| NPT FF Stainless steel F316/F316L Standard 1/2'' | 453004 | S1007543 |
€170.53
(excl. btw)
|
add to cart |
| NPT FF Stainless steel F316/F316L Standard 3/4'' | 453005 | S1007544 |
€173.31
(excl. btw)
|
add to cart |
| NPT FF Stainless steel F316/F316L Standard 1'' | 453006 | S1007545 |
€254.94
(excl. btw)
|
add to cart |
| NPT FF Stainless steel F316/F316L Standard 1''1/2 | 453008 | S1007546 |
€590.19
(excl. btw)
|
add to cart |
| NPT FF Stainless steel F316/F316L Standard 2'' | 453009 | S1007547 |
€778.79
(excl. btw)
|
add to cart |
